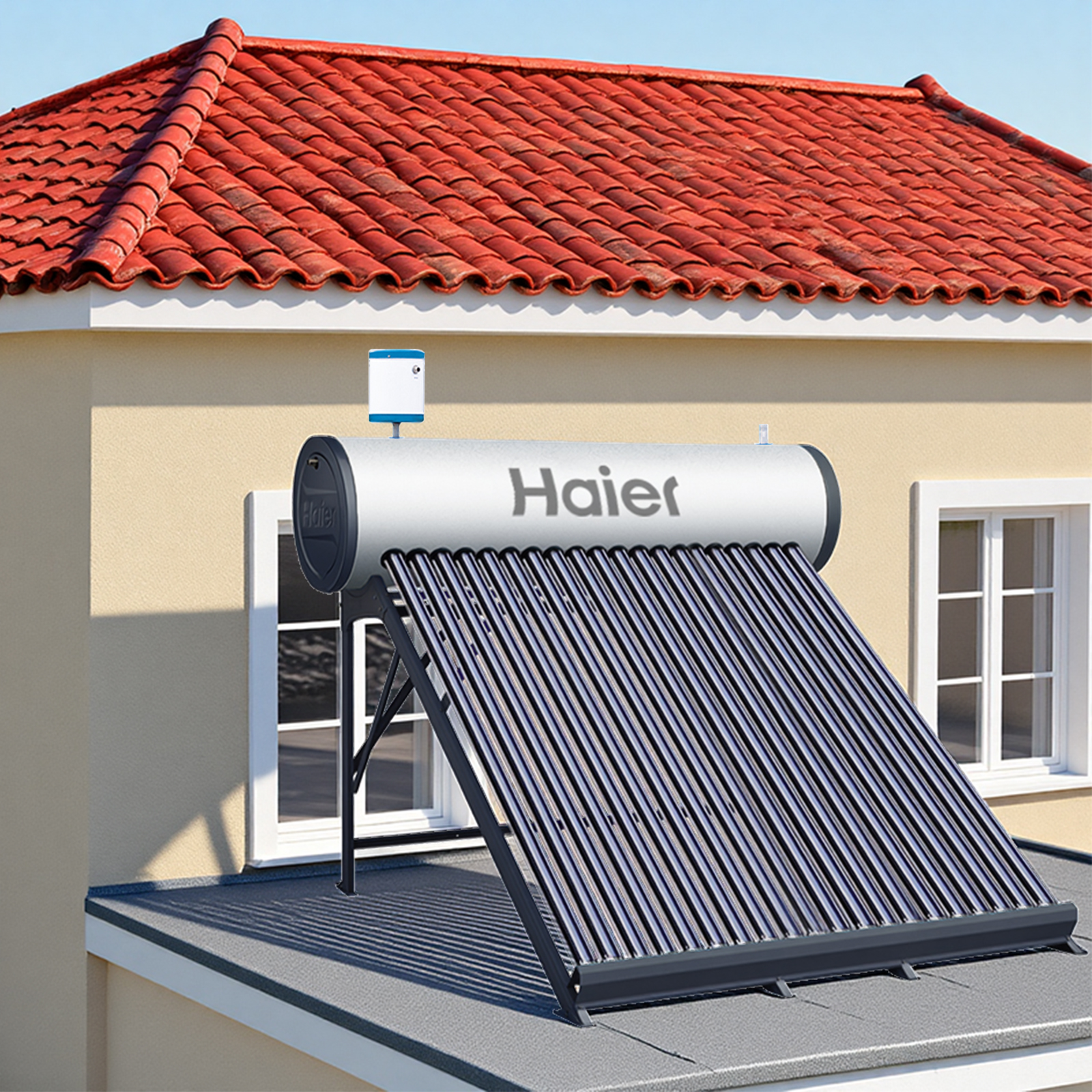

Haier New Arrival Project Use Solar Heat Energy 100L 150L 200L 300L Roof Non-Pressure Vacuum Tube Solar Hot Water Heater
Haier original factory production, strict manufacturing control,
high-quality guaranteed.
Evacuated Tube Collector Solar Water Heater & Higher Water Temperature Lower Heat Loss
OEM/ODM orders are warmly welcome All parameters and materials are fully customizable
Direct(unpressurized) /Indirect(pressurized)
Solar Vacuum Tube Water Heater & Electronic Series
|
Model
|
GV150REFF
|
GV200REFF
|
GV300REFF
|
|
Tubes No.s
|
16
|
22
|
30
|
|
System Type
|
Float box/Direct thermosiphon
|
||
|
Tank Size(L)
|
150.00
|
200.00
|
300.00
|
|
Length of Water Tank(mm)
|
1480.00
|
1957.00
|
2597.00
|
|
Outer Tank Dia.(mm)
|
Φ460
|
||
|
Inner Tank Material
|
Stainless Steel 304
|
||
|
Outer Casing Material
|
PCM
|
||
|
Side Cover Material
|
Steel Board Plating with Zinc
|
||
|
Side Cover Color
|
Grey
|
Grey
|
Grey
|
|
Insulation Material
|
Polyurethane
|
Polyurethane
|
Polyurethane
|
|
Insulation Thickness (mm)
|
40.00
|
40.00
|
40.00
|
|
Backup Power(kW)
|
1.50
|
1.50
|
1.50
|
|
Pipe Size
|
G 3/4''
|
G 3/4''
|
G 3/4''
|
|
Pipe Material
|
SUS304
|
SUS304
|
SUS304
|
|
Tube Dimension (mm)
|
Φ58*1800
|
Φ58*1800
|
Φ58*1800
|
|
Angle(°)
|
35.00
|
35.00
|
35.00
|
|
Color
|
Grey
|
Grey
|
Grey
|
|
Frame Material
|
Galvanized Steel
|
Galvanized Steel
|
Galvanized Steel
|
|
Load qty.40HQ(pcs)
|
94
|
72
|
53
|
Haier's Exclusive Patented Heat-Concentrating Ring Technology
Features macromolecular polymer material for minimal heat loss and enhanced heat retention.
Features macromolecular polymer material for minimal heat loss and enhanced heat retention.
Horizontal Uniform Foaming
Low Heat Loss, Provide More Hot Water
High Quality Inner Liner 1.Food grade stainless steel (durable) 2.Adhesion layer (reduces thermal expansion and contraction rate) 3.Enamel layer (high temperature resistant,anti corrosive,anti-mold,anti-scale)
Violet gold high-efficiency tube 1.reflects the heat inside the tube、reduce heat loss 2.absorbs sunlight energy、converts it into thermal energy to heat water 3.reduces light reflection、allows more light to reach the absorption layer 4.locks in heat via vacuum、long-lasting thermal retention
*Three-target (stainless steel-copper-aluminum) coating, the quality of the film is stable, the absorption ratio can reach up to 92%, with supper absorption rate and fast heating. *The reflective layer is pure copper film, which has higher reflection efficiency. And the vacuum degree can reach up to 5x10-3Pa and the heating effect is more obvious.
High-precision laser welding technology Zero Water Leakage From The Water Tank
Solder Joint Free Technology & Zero Safety Accidents in 20 Year
310 Stainless Steel + Mo Electric Heating Tube
Corrosion-resistant, anti-scaling, enduring heating efficiency & long-lasting durability.
Control Panel & Supports WI-FI Connection and Remote APP Control
Vacuum tube pressure test.
Withstands a 30mm-diameter steel ball freely falling from 450mm height, vertically impacting the middle of the collector tube without damage (passes the steel ball test)
Galvanized sheet bracket.
The triangular design structure can withstand wind force 10.
The triangular design structure can withstand wind force 10.
Product packaging
Company Profile
Established in 1984.Haier Group owns three listed companies, including Haier smart Home, which is part of the Fortune Global 500. Qingdao Haier New Energy Appliance co., Ltd., a holding company under Haier Smart Home,specializes in air-source heat pumps,heat pump water heaters, and other innovative energy-efficient products. In December 2015, DongZhi embarked on a new era as it became part of Haier, marking a transformative milestone inits history.This partnership combines DongZhi's legacy of excellence with Haier's cutting-edge technology, enabling the brand to deliver enhanced product experiences to global users.
FAQ
Q1:Can you print logo on products? A1:Yes, You just need to send us your logo. Q2:Can you give me a discount? A2:We will give you a discount according to your order quantity. Q3:How can we guarantee quality? A3: Always a pre-production sample before mass production; Always final Inspection before shipment. Q4. What can you buy from us? A4: Heat pump water heater, air source heat pump, inverter heat pump, EVI heat pump, instant electric water heater, storage electric water heater, solar water heater, gas water heater, etc. Q5. Why should you buy from us not from other suppliers? A5: Haier is a listed company with the biggest and most advanced heat pump production factories all over China. We have a very strong and professional R&D team with more than 40 employees. 4 global R&D centers, superior engineers are in research for 24*7, 11 global production base Q6:How about the payment ways? A6:Ali pay is the first option and priority for the payment.We can also accept payments via T/T, L/C, D/P, D/A, MoneyGram, credit card, Western Union, cash, escrow, etc.
USD 350
